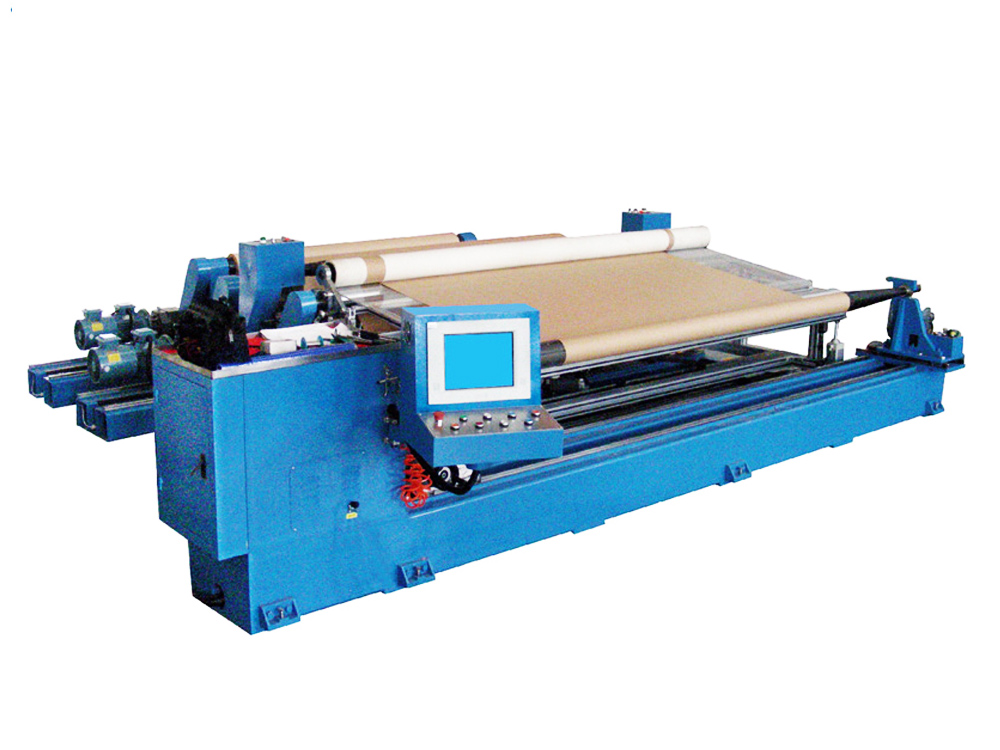

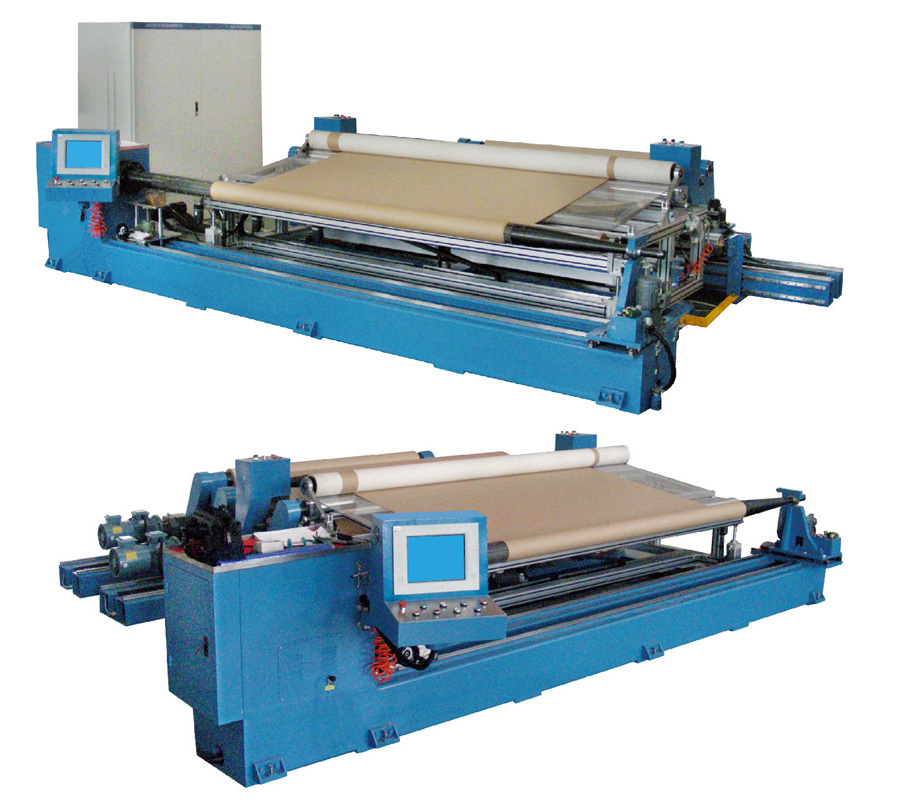

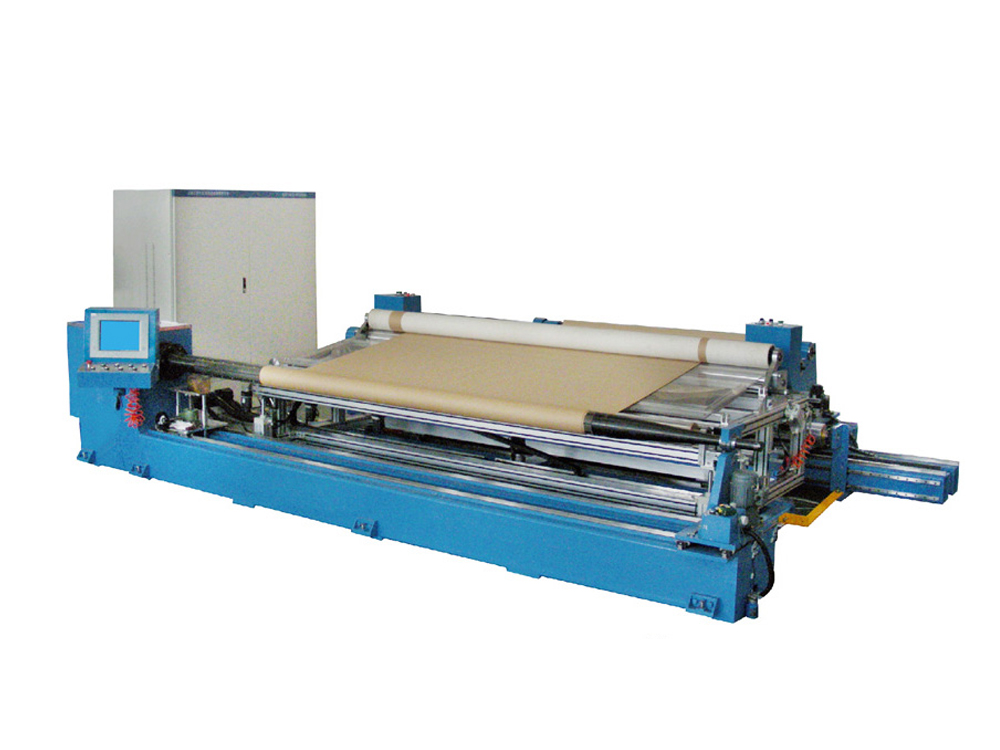

Insulating paper winding machine

  • Model:
  • Power:
  • Weight:
  • Describe:

    該設備用于VPU電壓互感器絕緣紙筒的卷繞,電壓等級涵蓋72.5KV-550KV所有產品。


 性能特點
  Performance Characteristics


    該設備用于VPU電壓互感器絕緣紙筒的卷繞,電壓等級涵蓋72.5KV-550KV所有產品。
     This machine is suitable winding the VPU voltage transformer tube for the 72.5Kv-550Kv products.


 技術參數
  Technical parameters










 絕緣紙筒內徑
  Inner of the tube


 124mm


 絕緣紙筒最大外徑
  Max external diameter of the tube


 350mm


 絕緣紙筒長度范圍
  Width of the tube


 1010mm—3648mm


 紙筒臺階數
  The steps of the tube


 1—6 個


 最少主屏數
  Min screens


 9 個


 最多主屏數
  Max screens


 33 個


 用紙寬度
  Width of the raw paper


 1 米、2 米、3 米


 紙輥內徑
  Inner of the raw paper


 76mm


 紙輥最大外徑
  Max external diameter of raw paper


 700mm


 紙筒最大重量
  Weight of the tube


 200kg


 設備最大轉速
  Max speed of the machine


 80rpm


 設備工作轉速
  Max working speed


 40-50rpm


 設備中心高度
  Height of the machine


 800mm
